Human-powered
A passive mechanical concept with no batteries, motors or charging.
INDEPENDENT DESIGN STUDY · V0.3
Human-powered.
By design.
A simpler idea for back assistance.
Soft straps. Passive elastics. Familiar parts.
Explore an exoskeleton from the inside out.
A digital prototype study. Physical performance and fit have not been validated.
Powered by movementPassive concept · No motors
DESIGNED TO BE UNDERSTOOD.EXPLORE EVERY CONNECTION ↓
01 / THE IDEA
Less complexity.
More possibility.
An approachable starting point for exploring wearable assistance.

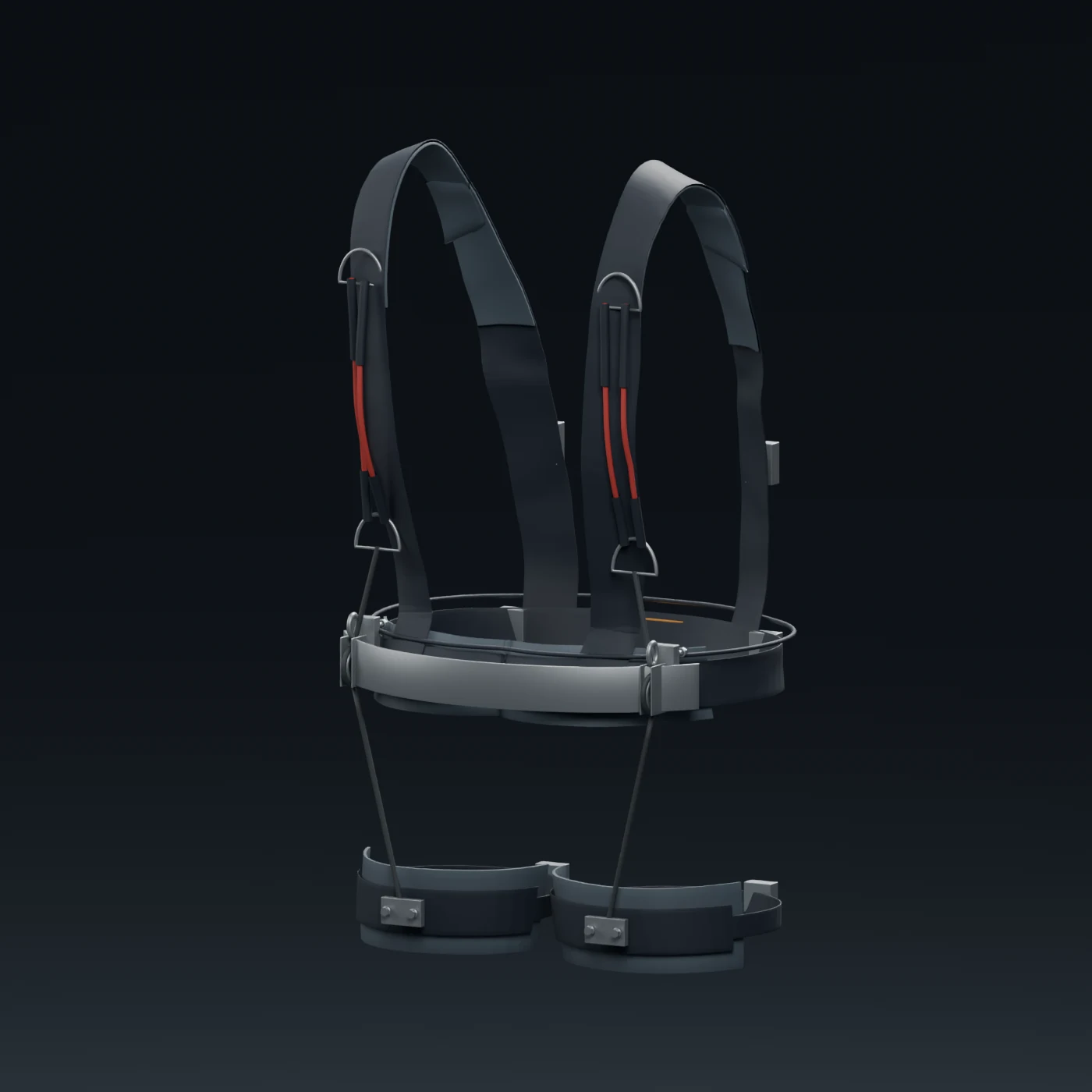

The proposed shoulder-to-thigh path uses elastic elements and cord guides to explore assistance during bending. Adjustable webbing and removable padding follow the body, while metal hardware keeps the component layout visible.
This is an engineering exploration. Assistance force, comfort, durability and the WORK/PARK release still need physical development and testing.
Parts you can trace
Eight catalog entries with supplier links, plus five clearly identified custom allowances.
Designed in the open
Understand the proposed layout, the budget, and the connections that still need work.
02 / LOOK CLOSER
Every part.
In perspective.
Switch views to explore the model.
Renders show the current V0.3 study.

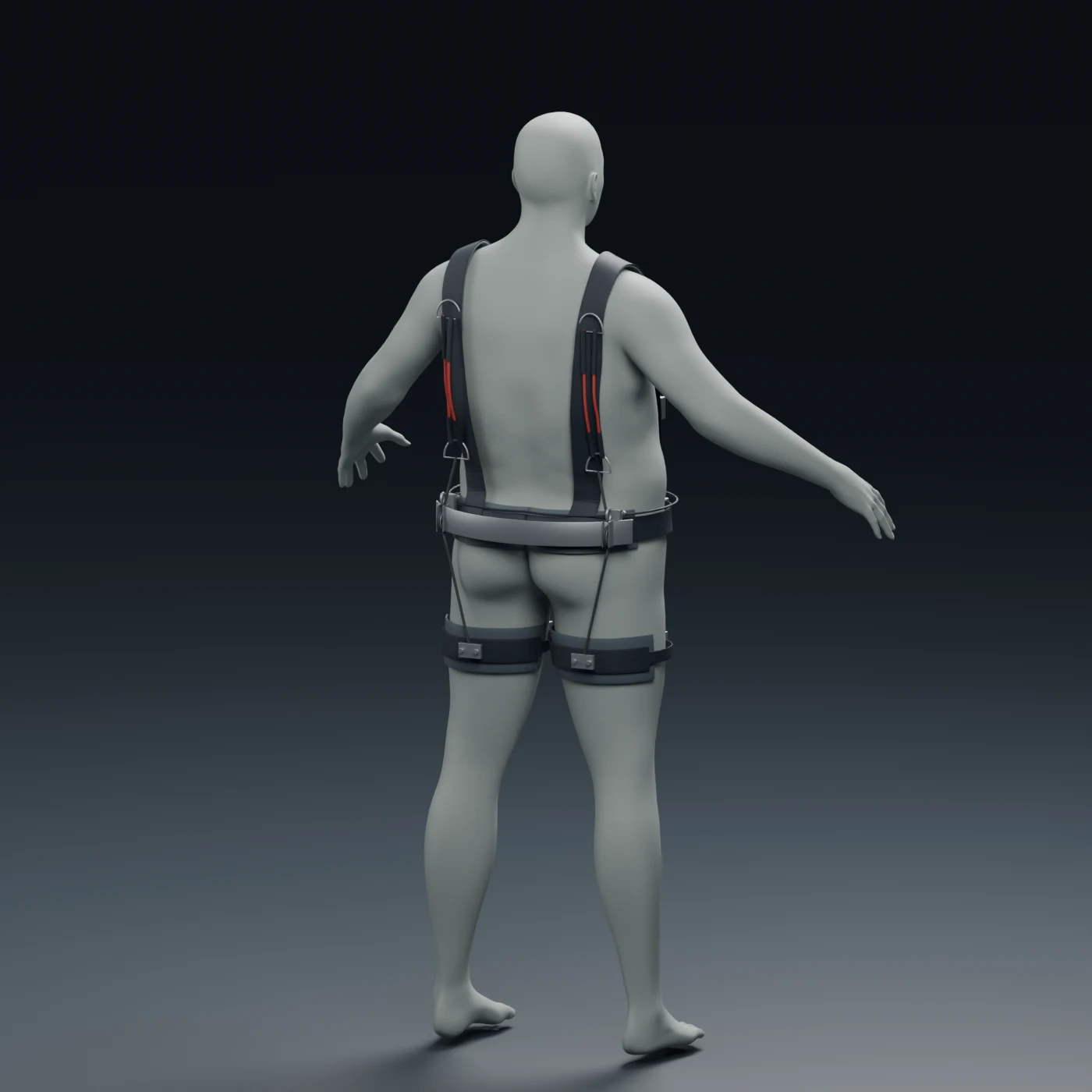

REAR ASSEMBLY / V0.303 / THE COMPONENT CATALOG
Familiar parts.
A considered budget.
CURRENT ESTIMATE$299.18 CADMaterials + shipping + tax allowance + contingency
A target below CAD $300, with five unquoted custom allowances. This is not a confirmed cost for a complete functional exosuit. Existing tools, printer access and unpaid DIY labour are assumed. Supplier prices were recorded September 7, 2026; check availability and delivered prices before buying.
| ID / COMPONENT | QUANTITY | EST. CAD | SOURCE |
|---|
Materials & full packs$220.89
Shipping allowance$45.00
Tax allowance · 5%$13.29
Contingency$20.00
Estimated total · CAD$299.18
04 / FROM PARTS TO A FIT STUDY
Understand the assembly.
One system at a time.
The PDF expands this sequence with component references, measurement sheets and review checkpoints.
01Measure & map the fit
+
Record chest, waist, hips, shoulder-to-waist length and separate thigh measurements over the intended clothing. Transfer the belt and cuff positions to a mannequin or drawing. The reference body is not a universal size template.
OUTPUT / A measurement sheet and unpowered layout02Lay out the soft harness
+
Identify P01 webbing, P02 adjusters and P06 padding. Use removable, nonstructural mock-up attachments to compare strap paths and cuff positions on the reference form. Final cut lengths and structural seams are still unresolved.
PARTS / P01 · P02 · P06 · C0303Study the pelvic interfaces
+
Compare the actual P04 pulley envelope, P07 cord diameter, C01 metal support and C02 fasteners. Mark mounting positions in a non-load-bearing template. Do not drill from the render: the axle stack, edge distances and attachment loads need engineering.
PARTS / P04 · P07 · C01 · C0204Develop the elastic & release system
+
Keep elastics disconnected from any person during development. Tubing terminations, extension limits, containment, structural connections and the dual WORK/PARK release must be resolved and bench validated before a loaded wearable assembly is possible.
PARTS / P03 · P05 · P08 · C03 · C04 · C0505Review before a physical build
+
Reconcile supplier measurements with interface drawings and an updated budget. Obtain qualified review of the load path and release behavior. The current PDF documents the design study; it does not supply validated fabrication drawings or a ready-to-use device.
STATUS / Engineering and physical validation outstanding
05 / TAKE A CLOSER LOOK
The thinking.
The parts.
All in one PDF.
A portable reference for makers and curious minds exploring the EXO concept.
- Illustrated front, rear, side and hardware views
- All 13 component entries, SKUs and supplier links
- Itemized Canadian-dollar budget and allowances
- Assembly-study sequence and measurement worksheet
- Unresolved interfaces and development checkpoints
$5
CAD · One-time paymentPDF download after confirmed payment
You are buying the current V0.3 design-study PDF. It is not a physical exoskeleton or validated fabrication plan. Native CAD files and future revisions are not included. The release mechanism is unfinished.
Already purchased in this browser? Open your download ↗06 / GOOD QUESTIONS
Before you
begin.
Is this a finished, tested exoskeleton?+
No. V0.3 is a digital anatomical fit and component study. There is no physical prototype or measured assistance data. It is not certified, PPE, a medical device, a fall-arrest system, or evidence of increased safe lifting capacity.
Can I build it for less than CAD $300?+
The current estimate is CAD $299.18, including shipping and tax allowances and contingency. Five custom entries are not quoted, and the release is unresolved. Final cost may exceed the target. The CAD $5 PDF purchase is separate from the hardware estimate.
Are these exact manufacturer CAD models?+
The catalog identifies specific supplier parts and SKUs. Some dimensions and mounting details in the visualization remain estimates. Verify the actual parts before creating interface drawings. No supplier endorses this exosuit.
How do I receive the PDF?+
When checkout is available, pay CAD $5 through Stripe and return to this site. Your download unlocks after payment is confirmed. Keep the same browser and allow its essential purchase cookie. Save your PDF and Stripe receipt; this is not a subscription.
Does one reference body fit everyone?+
No. The current model follows one 195 cm reference body. Digital surface checks are not proof of comfort or physical fit. Personal measurements, clothing clearance and physical fitting remain necessary.
